Ultrasonic Nozzle transducer for precision spraying

Model No.︰

50-200KHZ

Brand Name︰

Ginpertec

Country of Origin︰

China

Unit Price︰

US $ 1 / pc

Minimum Order︰

1 pc

Share on:

Product Description

1   Model Frequency :

   Customized depand on customer requirment

Model

Frequency

Power

Average particle

Maximum volume

Liquid viscosity
< CPS

Atomizing head structure

Medium

GPN-15500

15

500

62

150L/h

1500cp

Trumpet shaped

Ordinary water, various liquid substances, chemical liquids, various oils, viscous liquids, metal melts

GPN-20300

20

300

51

70L/h

1000cp

Trumpet shaped

GPN-30100

30

100

39

50L/h

< 100

Trumpet shaped

GPN-4060

40

60

32

10L/h

< 100

Focus/Conical/Flat (Optional )

GPN-5030

50

30

28

2L/h

< 100

GPN-5530

55

30

28

2L/h

< 100

GPN-6020

60

20

20

1L/h

< 100

GPN-8020

80

20

25

1L/h

< 100

GPN-10020

100

20

25

1L/h

< 100

GPN-12030

120

20

20

1/h

< 100






















2  Ultrasonic Spray Nozzles Principle

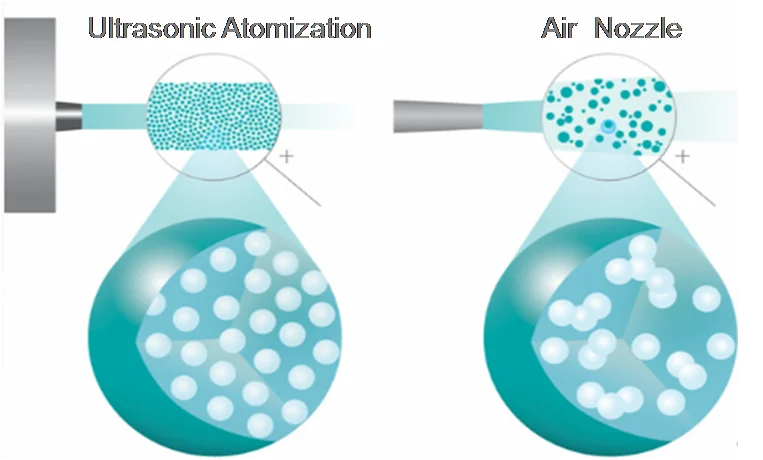

Unlike conventional spray nozzles that rely on pressure and high velocity motion to shear a fluid into small drops,the ultrasonic spray nozzle uses only low ultrasonic vibrational energy for atomization.It is widely used for ultrasonic spray coating and pyrolysis.The rate at which the liquid is atomized depends,within limits,solely on the volume that is being delivered onto the atomizing surface.Typically,the higher the frequency ,the lower the processing capability.The amount of material atomized can be as little as 1 μl/min.





Feature

    Ultrasonic Nozzle – High frequency vibration

    *   High efficiency,reduce material consumption.

    *  Very low flow rate capabilities,intermittent or continuous.

    *   Non clogging.

    *   Corrosion resistant

    *   High precise and highly controllable.

 Feature

Ultrasonic Nozzle – High frequency vibration

   *   High efficiency,reduce material consumption.

   *   Very low flow rate capabilities,intermittent or continuous.

   *   Non clogging.

   *   Corrosion resistant

   *   High precise and highly controllable.





The WideMist System which is one of the most popular ultrasonic spray nozzles offers wide adjustable spray widths range (20mm-150mm per nozzle), wide controlled flow rate range (0.1ml/min-200ml/min per nozzle) and wide droplets size options (15um-60um). Compared with conventional pressure spray technology, it has significant advantages in a broad range of applications. Whether large width fabrics, float glass, metal sheet or special shaped industrial or consumer products, the WideMist system maintains highly precise control of the coating at the deposition rate you require. Waste of raw material is significantly reduced, since the ultrasonic atomization can work well without high pressure air. As a result, the pollution due to VOCs is greatly reduced as well. In addition, maintenance is also much lower than conventional spray coating methods because ultrasonic nozzles don't clog.
